전동 지게차 3.5 - 5.0t

2480 - 7500 mm
3500 - 5000 kg

PureEnergy concept provides optimised energy efficiency.
Best visibility thanks to compact mast.
Safe battery exchange without crane.
Flexibly adjustable operating concepts.
Ergonomic workplace for more productivity.

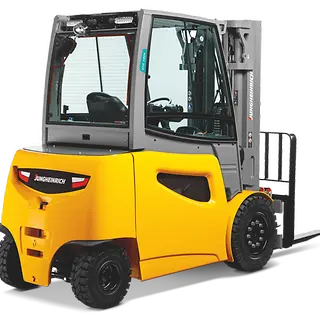

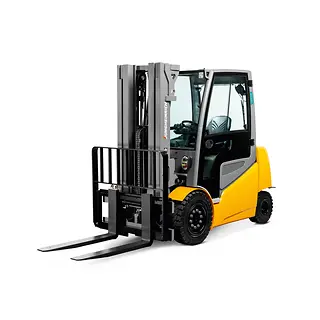

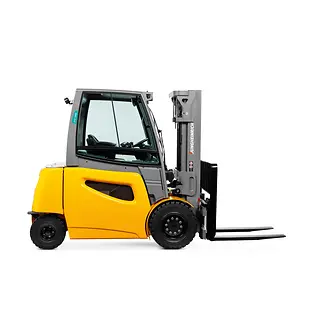

EFG 535-S50

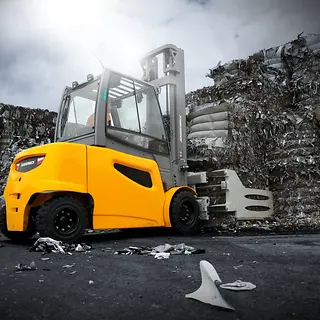

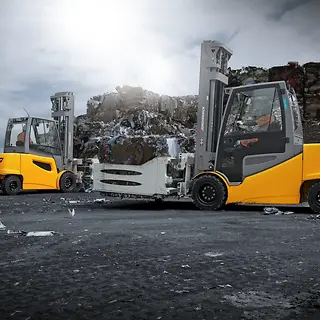

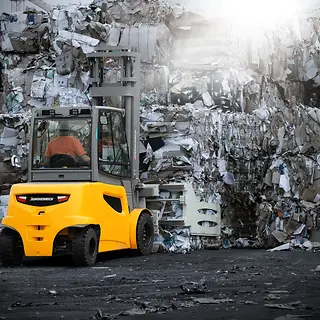

Our powerful and robust Series 5 electric four-wheel counterbalance forklift trucks are ideal for the toughest indoor and outdoor services. Thanks to smart mounting options, individual attachments can be fitted for transporting almost every kind of cargo. With our PureEnergy technology concept, these high-performance trucks get the work done with optimum energy and cost efficiency. Based on measurements according to VDI cycle, they consume up to 20% less energy than comparable competitive models at maximum throughput. The compact mast with extended field of vision and intelligent controls that adapt to each operator and application profile allow full performance with every journey. Various assistance systems and equipment options guarantee safe and efficient work – even under extreme conditions. The ergonomically perfected Series 5 EFG trucks are high-performance powerhouses for demanding operations.

혜택

연결된 트럭

트럭에서 생성되는 데이터를 활용하여 시간, 에너지, 비용을 절약하고 효율성을 높이십시오. 출고 시 장착되는 Jungheinrich의 텔레매틱스 박스는 다양한 하드웨어 및 소프트웨어 구성 요소로 유연하게 확장 가능한 무료 차량관리 스타터 패키지를 제공합니다.

특징

PureEnergy technology concept

Advanced 3-phase AC technology.
Compact control system and compact hydraulic unit.
Needs-oriented control of the hydraulics/motors.

Individual performance packages

Efficiency package with curveCONTROL.
drive&liftPLUS package with higher drive/lifting speeds.

Available with lithium-ion technology

High degree of availability thanks to extremely short charging times.
No battery replacement required.
Cost savings due to longer service life and low maintenance compared with lead-acid batteries.
No charging rooms and ventilation required as there is no gas formation.

Safety systems

Automatic reduction of the travel speed when cornering thanks to curveCONTROL.
No roll-back on ramps or inclines due to wheel stop, even when the truck is switched off (optional).
Excellent stability thanks to extremely low centre of gravity and high pivot steer axle.

Optional operator assistance systems

accessCONTROL: Access control system which only unlocks the truck once a sequence of safety checks has been completed.
driveCONTROL: Speed control, which automatically reduces the speed both when cornering and from a defined lift height.
liftCONTROL: Lift speed control, which reduces the travel speed as well as the tilt speed of the mast beginning at a defined lift height. The tilt angle is shown on a separate display.

Individually adjustable operating concept

Selection of 5 freely adjustable travel programmes.
Stepless single-point adjustment of armrest and steering column in 2 axes.
A choice of 5 different control elements.
Adjustable lever and controls angle.
Single or double pedal operation.

Ergonomic workstation

Low, highlighted entry step with level footwell.
Slim steering column for maximum knee and legroom.
High-resolution, high-contrast, full-colour TFT display with intuitive user interface.
Compact nested profile package with excellent visibility.
Unobstructed view thanks to special overhead guard design, optimised chain and hose configuration.
Operator-oriented storage concept for intuitive operation.
Large, adjustable armrest with different upholstery fabrics and spacious storage compartment.
External power supply via optional USB port.
Limited vibration as the cab is not directly connected to the frame (floating cab).




모델 개요

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 535k	3,500 kg	7,500 mm	17 km/h	3,805 mm	80 V
EFG 540k	4,000 kg	7,500 mm	16 km/h	3,818 mm	80 V
EFG 540	4,000 kg	7,500 mm	16 km/h	3,962 mm	80 V
EFG S40	4,000 kg	7,500 mm	16 km/h	4,102 mm	80 V
EFG 545k	4,500 kg	7,500 mm	16 km/h	3,818 mm	80 V
EFG 545	4,500 kg	7,500 mm	16 km/h	3,962 mm	80 V
EFG 550	4,990 kg	7,500 mm	16 km/h	3,962 mm	80 V
EFG S50	5,000 kg	7,500 mm	16 km/h	4,102 mm	80 V
